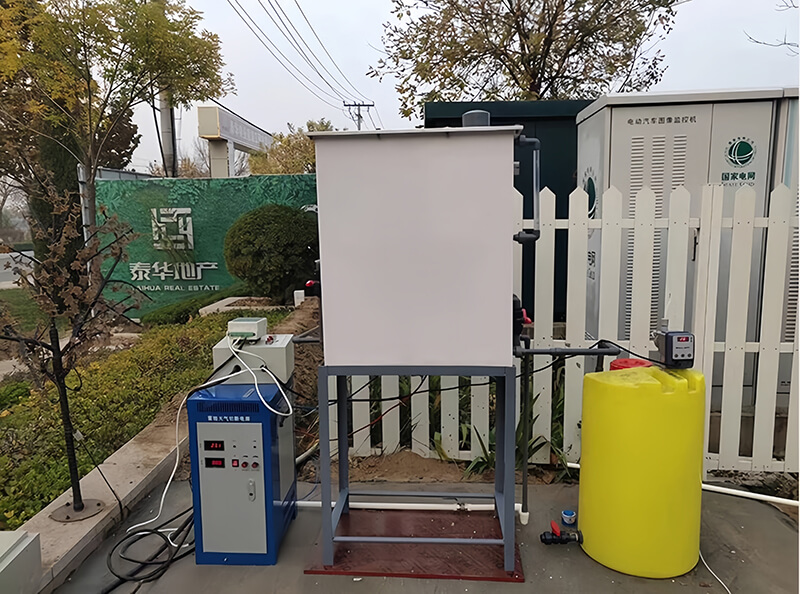

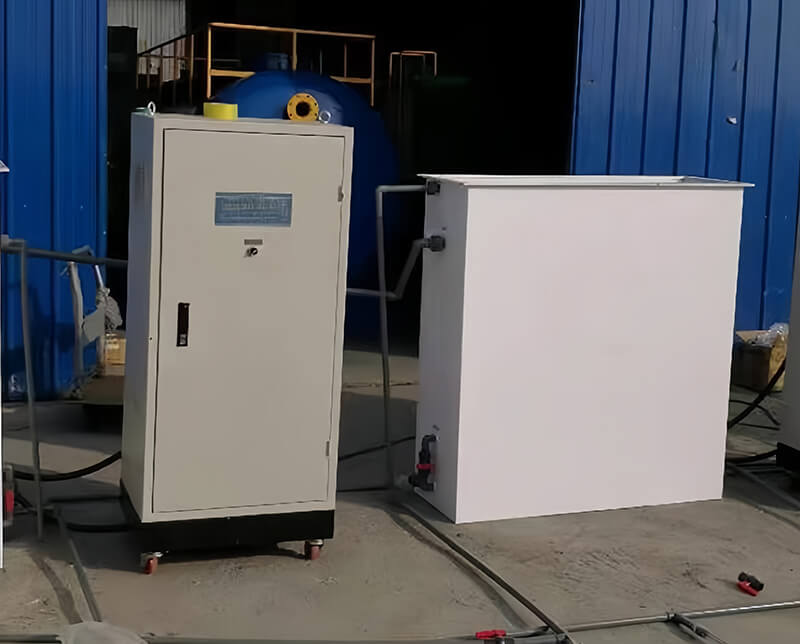

Sodium hypochlorite disinfection waste water treatment equipment

Price range: 1021-2321USD/set, MOQ 1 set;

We are factory direct and support customization

Type Unit Size（L*W*H）
Generator 50g 800*450*900mm
electric control box size：36*42*72cm
100g 900*700*1050mm
electric control box size：36*42*72cm
200g 1300*600*1200mm
electric control box size：36*42*72cm
300g 1335*600*1200mm
electric control box size：36*42*72cm



Chat Now
Message
Email

Product Details

Product Details

Wide range of water treatment system

China Top 5 water Treatment Factory Group with high-tech engineer team. Big capacity professional water treatment factory offer you best quality and best price products. Fast Delivery and low MOQ. Most professional sales team for you durling communication with most effeciency way and best engineer team for you any solution case we can do for you. Especially full product range for you to choose from . From RO system deal with dirty water for clean water to use or for drink to waste water that our machine remove all harmful from water to make them clean to our environment. From house use to small business until big factory waste water different kinds of situation we can deal with them. untill now we deal with 100000 cases all over world

We have so many different machines for you to choose from . If you are special case our engineer team will make solution for you .Choose us you choose the best water solution factory group for you from made in china. Contact us for more. We will offer you best solution best price with fastest delivery time

If you are considering an RO unit, contact us for an economical water treatment solution today

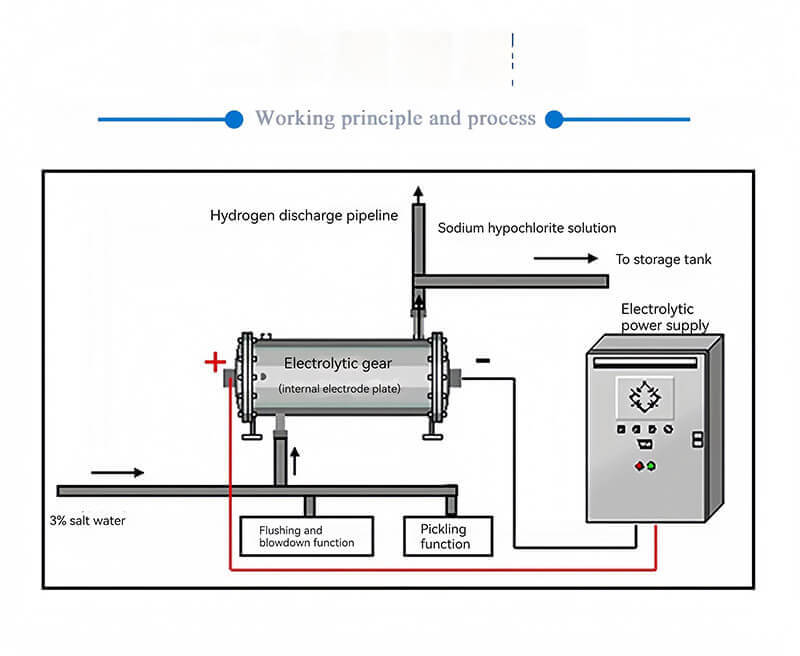

Woking principle for the equipment

The principle of sodium hypochlorite generator disinfection equipment is mainly based on the process of electrolyzing saline solution. Specifically, the device electrolyzes a solution containing a certain concentration of sodium chloride, causing the chloride ions in the solution to lose electrons at the anode and be oxidized into chlorine gas, while at the cathode, water molecules gain electrons and undergo a reduction reaction to produce hydrogen gas and sodium hydroxide.
The generated chlorine gas will react with water to produce hypochlorous acid and hydrochloric acid. Hypochloric acid is the main disinfectant component, which has strong oxidizing properties and can destroy the cell walls and membranes of microorganisms, thereby playing a role in sterilization and disinfection.
Throughout the process, by controlling the electrolysis conditions (such as current density, electrolysis time, brine concentration, etc.), the concentration and pH value of the generated sodium hypochlorite solution can be adjusted to meet different disinfection needs

Pay attention to water pollution

Water pollution is one of the most pressing environmental issues facing our planet today. It occurs when harmful substances, such as chemicals, waste, and pathogens, contaminate water bodies, including in rivers, lakes, and oceans. The chemical waste water from the hospital, clinic, dental clinic, the virus from the drinking water, swiming pool waste water, the pet clinic waste water all the discharged water has the harmful component which is harmful to our life. We need to do some treatment before discharge the water, and this machine can remove the relevant harmful component.

The equipment advantages

Efficient disinfection: Sodium hypochlorite solution has a better disinfection effect than hydrogen peroxide, and its ability to kill bacterial spores is also stronger than ozone, so it can effectively kill various bacteria, viruses, and other microorganisms.
Easy to operate: The operation of the equipment is relatively simple, just configure an appropriate concentration of saline solution, and then start the equipment to carry out the electrolysis and disinfection process.
Energy saving and environmental protection: Compared with other disinfection methods, sodium hypochlorite generator disinfection equipment does not require additional chemical disinfectants, reducing the use of chemical agents and the generation of waste, which meets environmental protection requirements.
Stable operation: The sodium hypochlorite generator disinfection equipment operates stably and reliably, can work continuously for a long time, and meets the needs of large-scale disinfection.

Precautions for using sodium hypochlorite

1. Open the inlet valve before turning on the power.
2. After starting the power supply, slowly adjust the current knob, and it should be slightly lower than the rated value. After stopping the machine, adjust the current back to 0 position.
3. Regularly clean the electrode plate (soak it in dilute hydrochloric acid for several times, rinse it with clean water, and do not scrape the coating on the electrode plate with hard objects). Try to use clean salt (iodine free refined salt) as much as possible.
4. Maintain good ventilation between equipment rooms (exhaust fans should be installed between equipment rooms).
5. The installation position and wiring of the positive and negative electrode plates should be accurate and error free

Wide range of applications

The sodium chlorate generator disinfection equipment is considered a green and environmentally friendly disinfection device as it does not produce harmful by-products such as chlorates and chlorites during the preparation of disinfectant solution. At the same time, the generated sodium hypochlorite solution not only has efficient disinfection effect, but also has bleaching and cleaning effects, which can be widely used in hospitals, pure water treatment, food processing and other fields.

Why Choose US

China Top 5 water Treatment Factory Group with high-tech engineer team. Big capacity professional water treatment factory offer you best quality and best price products

  • International factory group with many years history full of product experience with company gets the standard certificate of ISO9001, ISO14001;ISO45001 etc.
  • Rich experience and professional R&D team engineer, meets the customized needs in waste water treatment
  • Factory owned laboratory for water treatment equipment test and quality checking
  • Professional team from sales to engineer and workers .from designs to production we care for your product and project every steps and make one-stop solution for you .we can be effeciency communication and perfect products for you .
  • Wide range of equipment meets water requirement in all industry, both pure water treatment and waste water treatmentand all different situation we can make solution for you
  • Professional engineer team . big capacity and high efficiency factory best price and high quality product for you
